Ingot Mould

FOB Reference Price:Get Latest Price
US $2,000-5,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CSM
Model Number:
3x300
Application:
non-ferrous metal ingot
Material:
Steel
Dimensions:
2 CBM
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
nude packing, with bar strapping
Port
Shanghai
Lead Time :
within 90 days

Specifications

-Accurate dimension;
-ISO 9001 quality system;
-Safe operating product;
-Professional casting skill;
-Complete requirements

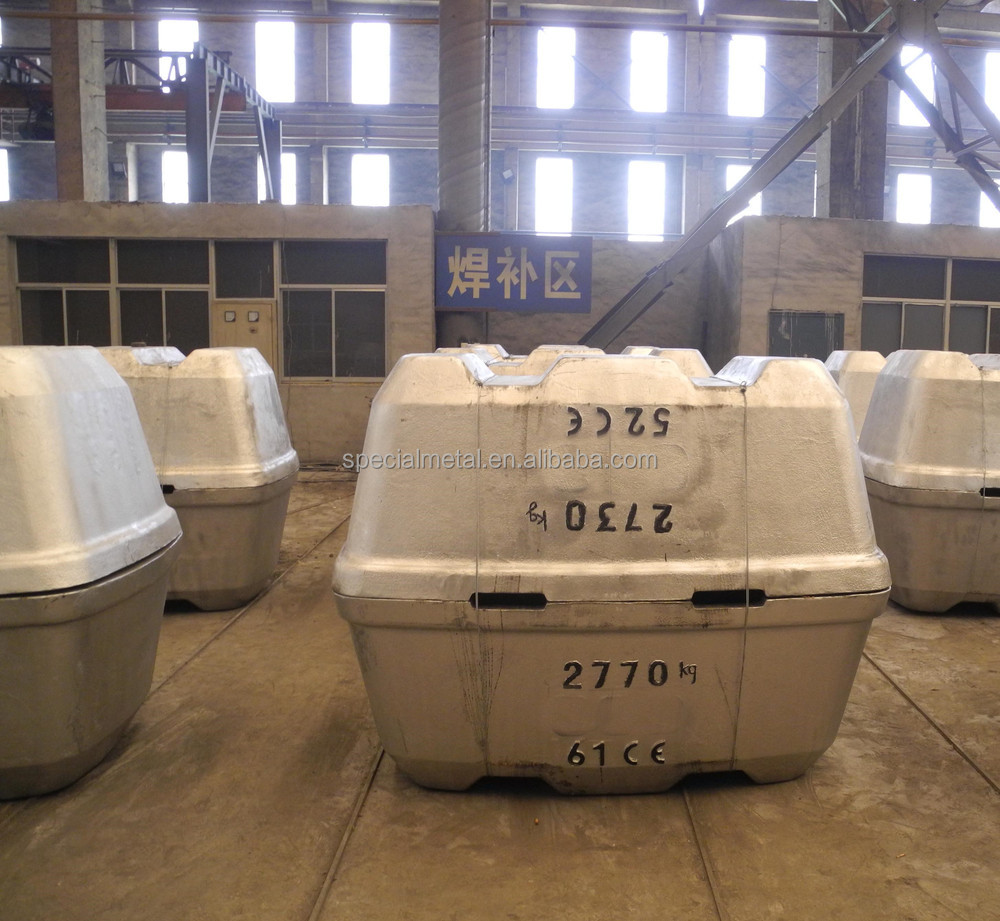

INGOT MOULD

Ingot mould, which is used in metallurgical and melting fields, is a cast mold in which the liquid steel solidificated into a ingot.

MATERIAL

We CSM ingot moulds are made from Cast Steel GS45 DIN1681.

 Production Process

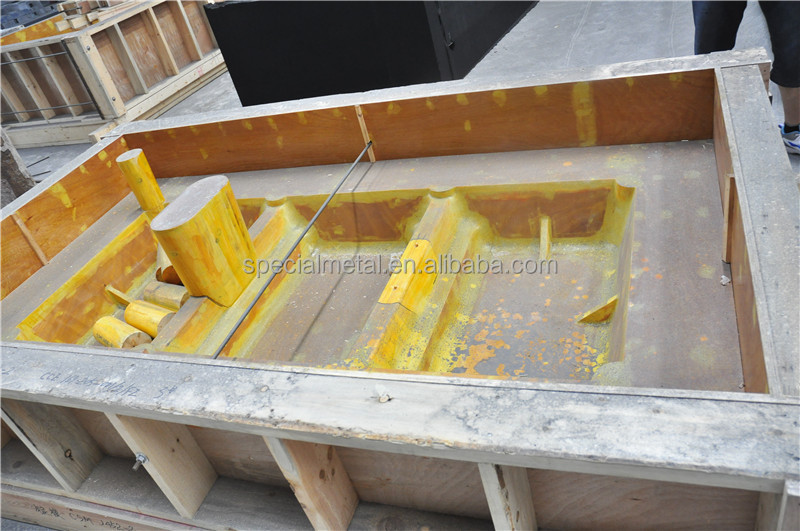

1. Wooden pattern Production

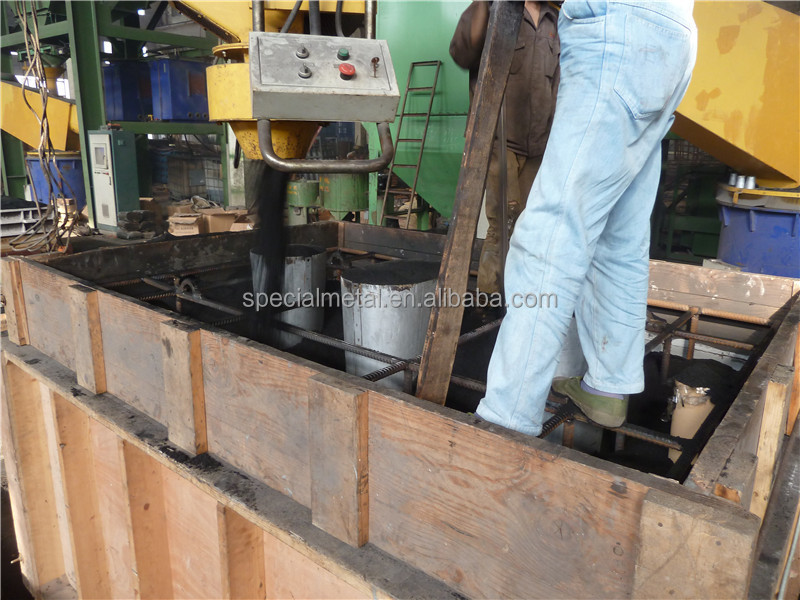

2. Molding


3. Pouring


4. First cleaning

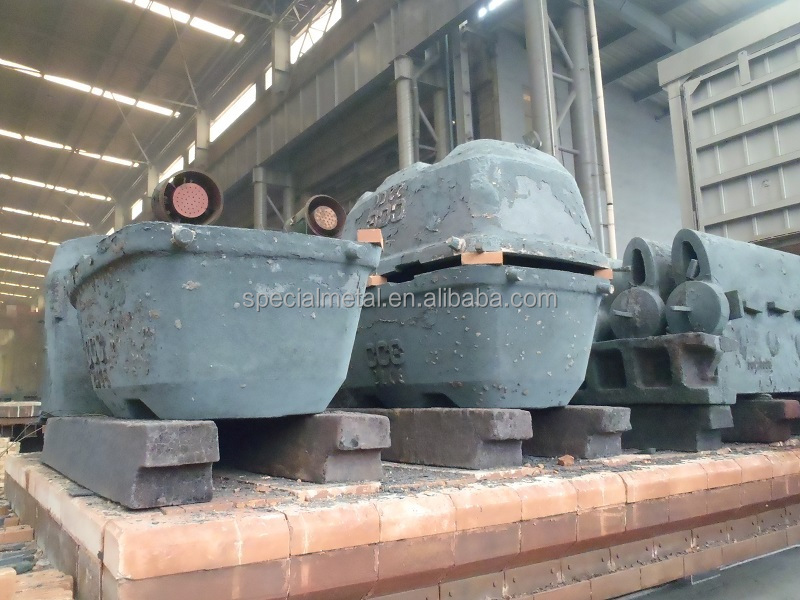

5. Heat treatment


6. Grinding (inspection)

7. Packing-delivering

ingot mould54.jpg

Quality assurance

The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:

• Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination;

• Dimensional check supported with a “as-built“ sketch;

• Record of the heat treatment chart;
