Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: CSM or OEM
  • Model Number: As per client's drawings
  • Application: metallurgical
  • Material: Steel
  • Dimensions: customized

Packaging & Delivery

Packaging Details suitable for exportation, or according to customer's requirements
Delivery Time 30~120 days according to order quantity



FAQ



Anode steel stub for Aluminum Smelters



Product Description



Electrolytic aluminum anode steel claw is also called electrolysis claw. There are several types of claws, such as parallel three claws, four claws, stereoscopic four claws, six claws, eight claws, double anode steel claw etc.





Equipped with physical and chemical measurement and quick analysis lab before ladle, refining by electric arc furnace (or intermediate frequency furnace) and adding the rare earth, all these ensure the lowest air and impurities content in the molten steel, which achieves good conductivity. By advanced dry sand compaction negative pressure (LOST FOAM) environmental casting process, the anode steel claw gets the qualified dimensions, smooth surfaces, good internal organization, free of sand holes, slag inclusion, cracks, porosity and shrinkage defect.





Steel Chemical Composition Specification





Working Range

Element

Min(%)

Max.(%)

C

0.08

0.15

Si

0.35

0.60

S



0.03

P



0.05

Mn

0.25

0.50

Cr



0.25

Ni



0.4

Mo



0.15

Cu



0.30

Carbon Equivalent







Melt Range: 1494-1515











 Manufactureing Process



                                     Modeling                                                                                                       Pouring







                      Inspection                                                                                                         Inspection







Our Services



1. Quality manual is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:

   2.heat treatment report

   3.Mechanical properties report

   4.Ultrasonic test report

   5. Magnetic particle inspection report

   6.Dimension inspection report

   7.Wall thickness report

Company Information



China Special Metal Group Limited (CSM) is a supplier of metal material & machinery products. Our group is good at manufacturing on castings, high-precision large machining, welded fabrications and other machineries. Meanwhile, CSM provides high quality products and services to customers all over the world.

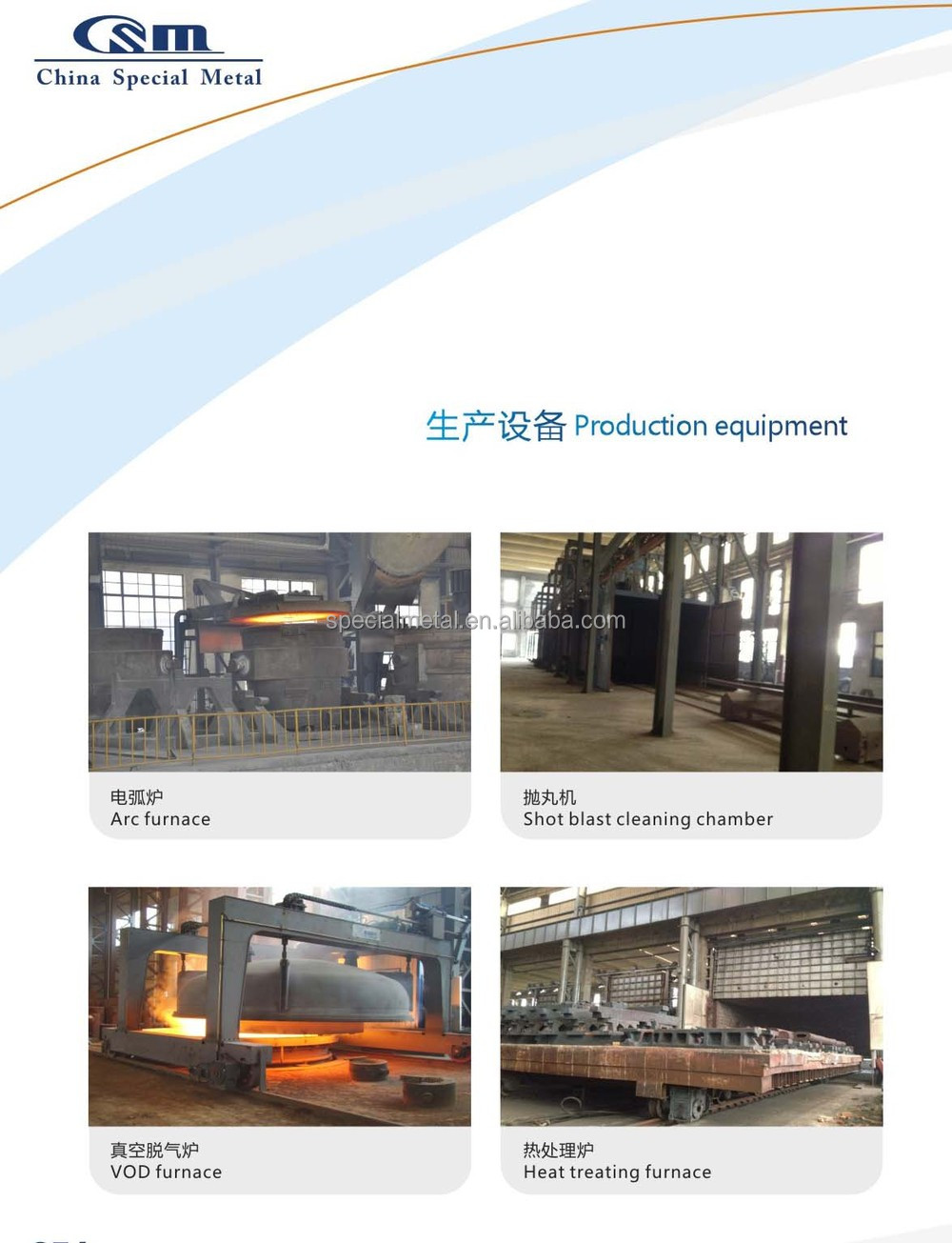

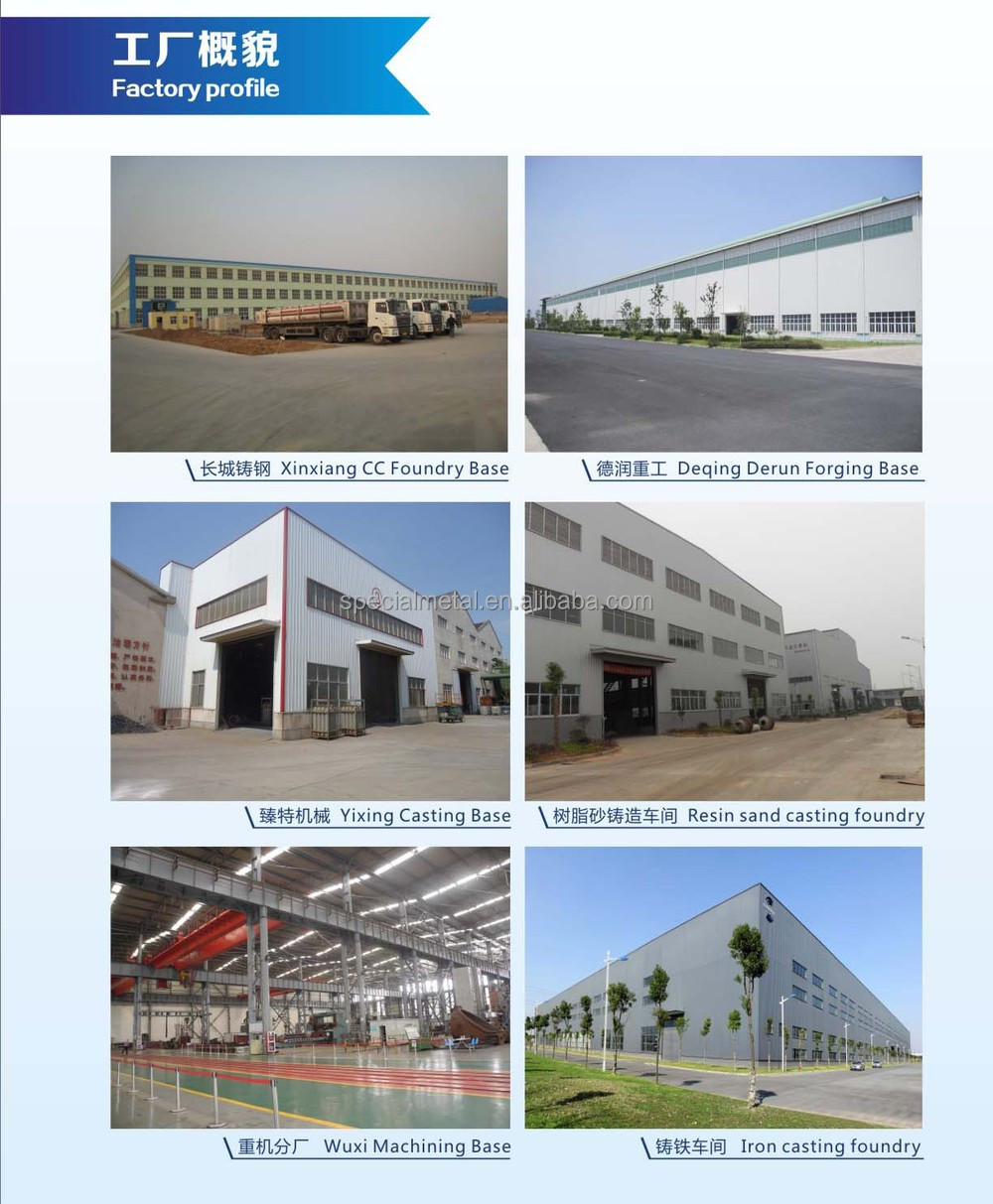

    Our group owns two mainly manufacturing bases. Casting bases in Wuxi, and the welding fabrication base in shanghai. Also we set up the business center in Shanghai. We offer the products in cement machinery, mining machinery, harbor machinery, metallurgical equipment, water conservancy machinery, shield machinery and wind power generation, etc. We can manufacture the products which max individual weight of 220MT. We own domestic advanced technical CNC machines such as the NC boring and milling floor-type machine in 28 meters long, 4.5 meters high, NC horizontal lathe with 7m in diameter, 20m long,NC Vertical Lathe in Φ8 meters .And we have 50T and 20T Ladle Refining Furnace, 70T Vacuum Degassing Furnace, 20T/5T/3T Electric Furnace , 8000T Hydraulic Press , Φ 5m NC Ring Rolls one for each.



    Besides the machines mentioned above, our group can also supply the products such as shaft (0.5MT-80MT), ring, flange, steel casting (maximum in 275MT) or the products based on customer’s drawings, especially we have rich experience in marine steel castings & forgings. We pass the certification of China Classification Society(CCS), Det Norske Veritas(DNV), Lloyd’s Register of Shipping(LR), Bureau Veritas(BV), American Bureau of Shipping(ABS), German Classification Society(GL), also ISO 9001 and ISO 14001.



    Our group also owns a manufacturing base of titanium products such as titanium bars, wires, plates, sheets, tubes, pipes, forgings, castings, and special fasteners in Xi’an. Besides, incoloy, inconel, monel, nimonic, and hastelloy products are also provided.



    We hope to get the chance to offer our high quality products and our best services to you!
