vertical mill grinding roller

FOB Reference Price:Get Latest Price
US $1,600-2,500 / Tons | 20 Ton/Tons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CSM or OEM
Model Number:
customized
Application:
Cement, building material, chemical, coal
Material:
Steel
Dimensions:
20~120t
SupplyAbility
SupplyAbility:
5000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
nude or according to customer's requirement
Port
Shanghai
Lead Time :
60~90 days according to order quantity

Professional manufacturer of grinding roller for vertical mill



1.General Introduction

Grinding roller is a core part of vertical mill. Shanghai Special Metal Co., Ltd supplies customized service according to customers’ requirements. Besides, Shanghai Special Metal Co., Ltd obtains good reputations on grinding roller casting, finish machining and bead welding service.

Our main material for the Grinding roller for vertical mill is similar to followings:

Standard Specifications for Cast Steel ZG30Mn

Country

Standard

Grade

United Kingdom

BS 970

080A30/080M30

USA

ASTM A29M

1030

Germany

DIN EN 10083-2

30Mn5

Japan

JISG4051-79

S30C



2.Weight

20~120t



3.Application



Cement, building material, chemical, coal and others



4.Priority



1. High hardness, anti-cracking and wear resistant



2. Arc air gouging technology is applied by SHANGHAI SPECIAL METAL CO., LTD during finishing, making sure steel castings good appearance quality.



3. SHANGHAI SPECIAL METAL CO., LTD promise: will do inspections before delivery to make sure each produced grinding roller is qualified, and refuse any inferior and defective products to be delivered.



5. Production Process

1. Wooden pattern Production

2. Molding

3. Pouring

4. First cleaning

5. Heat treatment – grinding (inspection)

6. Rough machining (inspection)-finishing machining (inspection)

7. Packing-delivering

6.Quality assurance

The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:

• Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination;

• Dimensional check supported with a “as-built“ sketch;

• Record of the heat treatment chart;

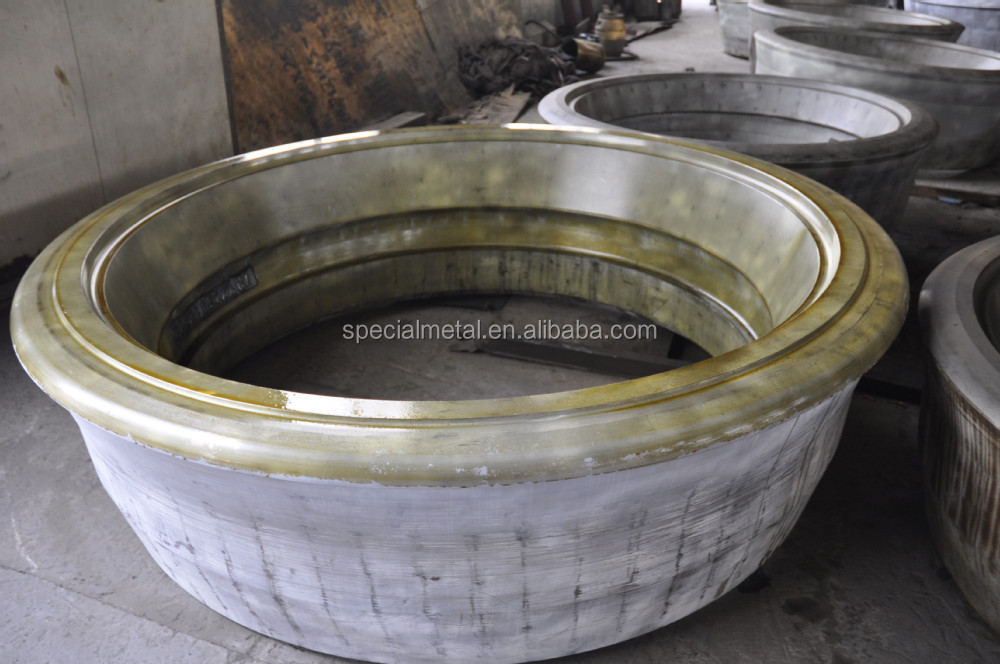

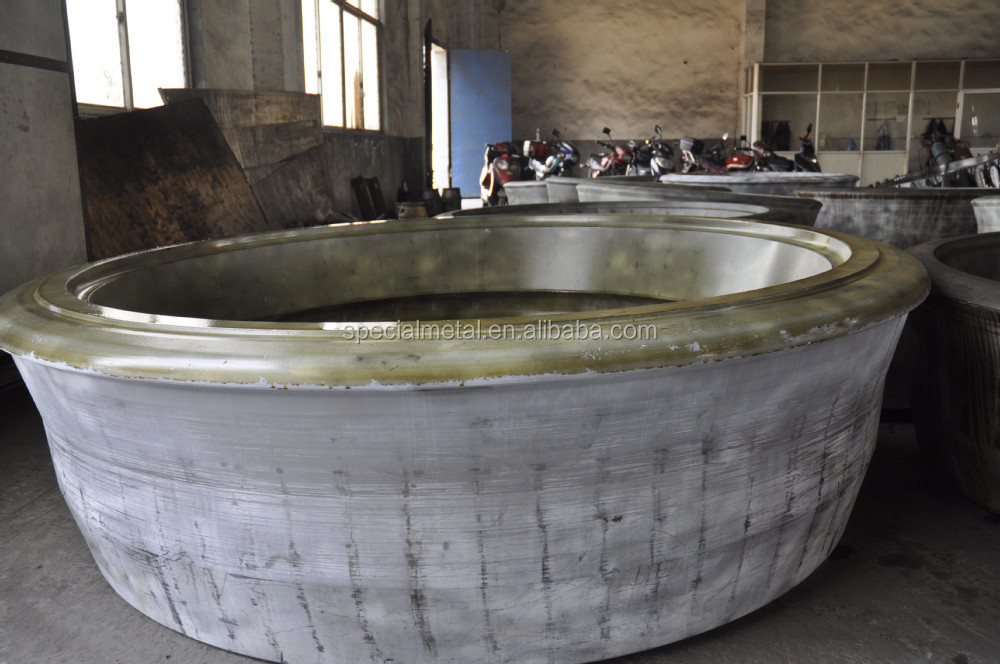

Grinding roller for vertical mill01.jpg   Grinding roller for vertical mill02.jpgGrinding roller for vertical mill06.jpg    Grinding roller for vertical mill07.jpg Grinding roller for vertical mill08.jpg    Grinding roller for vertical mill14.jpg
