vertical mill grinding table

FOB Reference Price:Get Latest Price
US $1,600-3,000 / Ton | 1 Piece/Pieces (Min. Order)
Supply Ability:
5000 Ton/Tons per Month
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CSM or OEM
Model Number:
customized
Application:
Cement, building material, chemical, coal, electricity, metallurgy
Material:
Steel
Dimensions:
20~150t
Color:
selectable
Packaging & Delivery
Packaging Details
nude or according to customer's requirement
Delivery Time
90~120day following order quantity

1.General Introduction

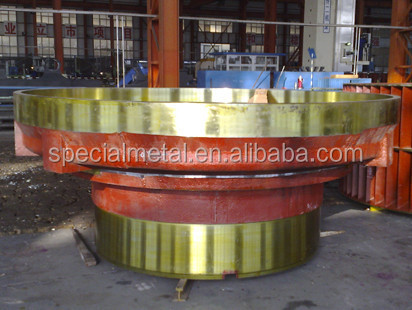

Mill table is an important part of cement vertical mill and slag vertical mill. Mill table consists of resistance loop, liner plate and base. SHANGHAI SPECIAL METAL CO., LTD optimizes casting technology of mill table, applies the most advanced molding - sodium silicate-bonded sand. Our technology overcomes structural shortcomings of traditional methods. The advantages are base of mill table is uniformly stressed; nip angle between mill table and mill roller is enlarged, good anti-corrosion of no wear-resisting face.



SHANGHAI SPECIAL METAL CO., LTD produces good quality vertical mill roller, mill table, hollow shaft, large ring gear and riding wheel, these parts are well accepted by overseas market.



SHANGHAI SPECIAL METAL CO., LTD provides all kinds of customized mill table, including all types of GRM series vertical mill table and other brands/models vertical mills. We guarantee good quality and meet clients’ demands.



2.Weight

20~120t



3.Material



Plain carbon steel, Si-Mn steel



4.Priority



1. High hardness, anti-cracking, wear resistant, fine workmanship



2. Arc air gouging and shot blasting are used to casting steels’ finishing, to make sure good appearance quality.



3. NDE inspections are applied on stress surface before delivery, to ensure products are good in stress capability and stable in operation.



5.Production Process



1. Wooden pattern Production



2. Molding

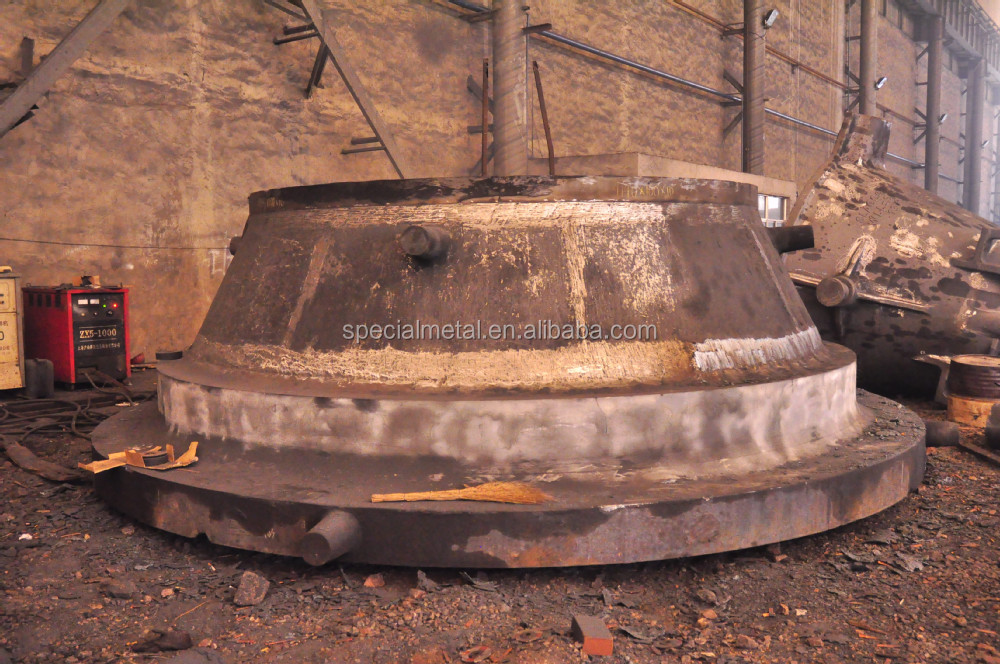

3. Pouring



4. First cleaning



5. Heat treatment – grinding (inspection)

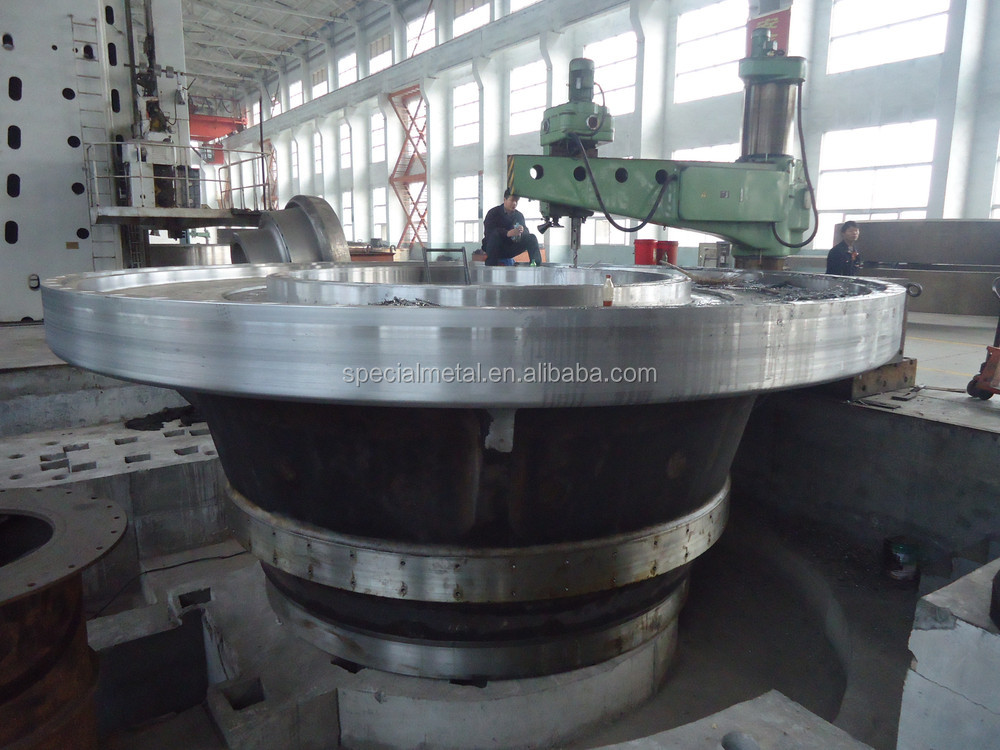

6. Rough machining (inspection)-finishing machining (inspection)



7. Packing-delivering



6.Quality Assurance



The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:



• Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination;



• Dimensional check supported with a “as-built“ sketch;



• Record of the heat treatment chart;



7.Our service

   Prompt response in 24h after your inquiry

   Several years high-precision processing experience

   OEM service

   Advanced management ability with high technology

   Strictly quality control

   We can design the production drawing when you supply the design drawing
