slag pot

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
CSM
Model Number:
follow customers' request
Application:
Metallurgy Machinery,
Material:
Steel
Dimensions:
sand casting
Inspection:
UT,MPT,TP
Supply Ability
Supply Ability:
60000 Metric Ton/Metric Tons per Year
Packaging & Delivery
Packaging Details
safe and seaworthy
Port
Shanghai
Lead Time :
60 to 90 days

FOUNDRY SLAG POT

Slag pot is a load-bearing device whose sole purpose is to collect molten or solid slag generated during metallurgical or chemical processes, to retain it during transport and to deposit it at a place of disposal.

MATERIAL

We CSM slag pots are made from Cast Steel, which is similar to our casting ladles, we will offer the material specification as you required.

Standard Specifications for Cast Steel

Country

Standard

Grade

United Kingdom

BS 3100:1991

425-A2

USA

ASTM A 27

60-30

Germany

DIN 17182

GS-16Mn5

Japan

JIS G7821:2000

SC42

International

ISO 3755:1991

 230-450

DESIGN

Slag pots are crucial items as they are part of lifting equipment and therefore undergo in terms of mechanical design engineering and handling the national safety regulations of the state where they are supposed to be operated.Thus, the following design criteria must be taken into consideration:

      Type of furnace that the slag pot will service,

      Quantity and type of slag generated,

      Method of handling and dumping the pot,

      Heat impact during operation,

      Dimensional restrictions,

      Pot maintenance procedures

Slag pot designed by CSM complies with the requirements of structure dimensions, mechanical properties and guarantee by chemical composition, heat treatment, non-destructive testing and visual inspection against surface.

 Production Process

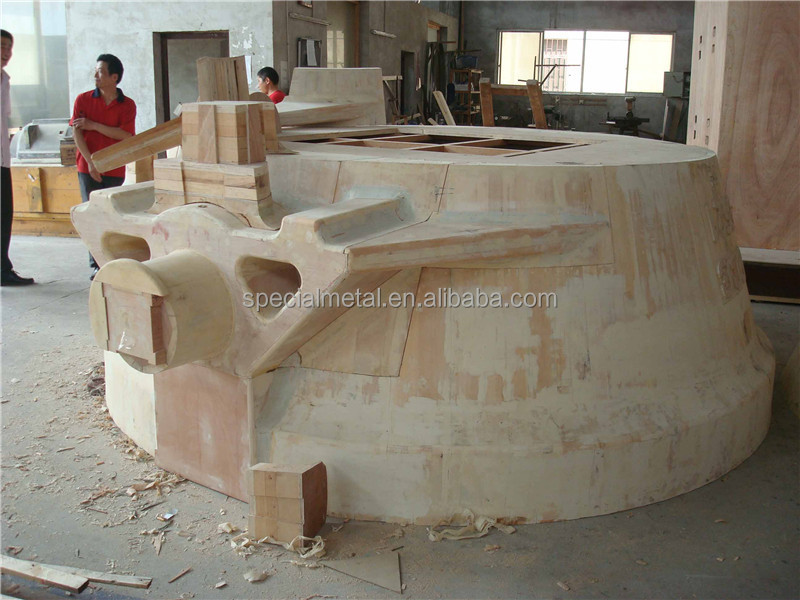

1. Wooden pattern Production

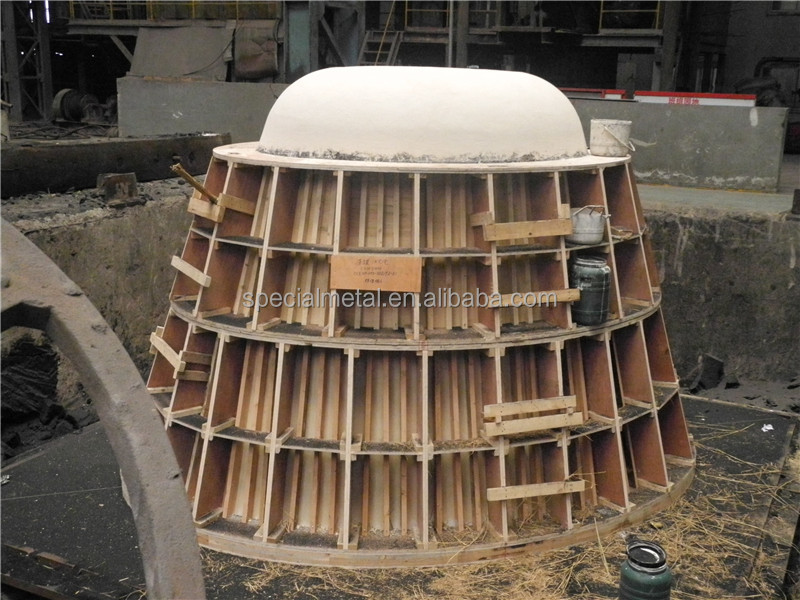

2. Molding

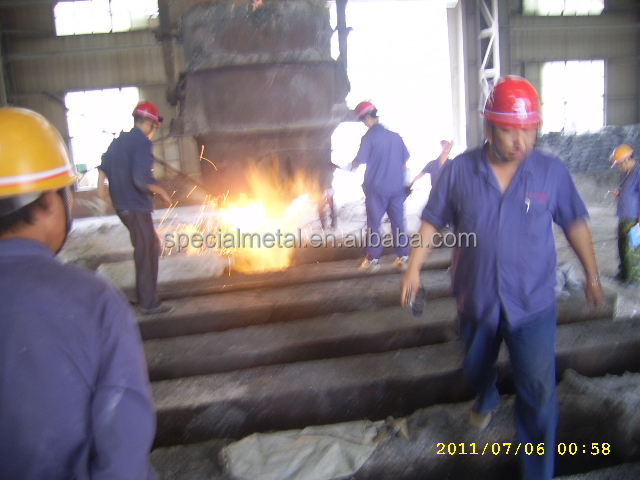

3. Pouring

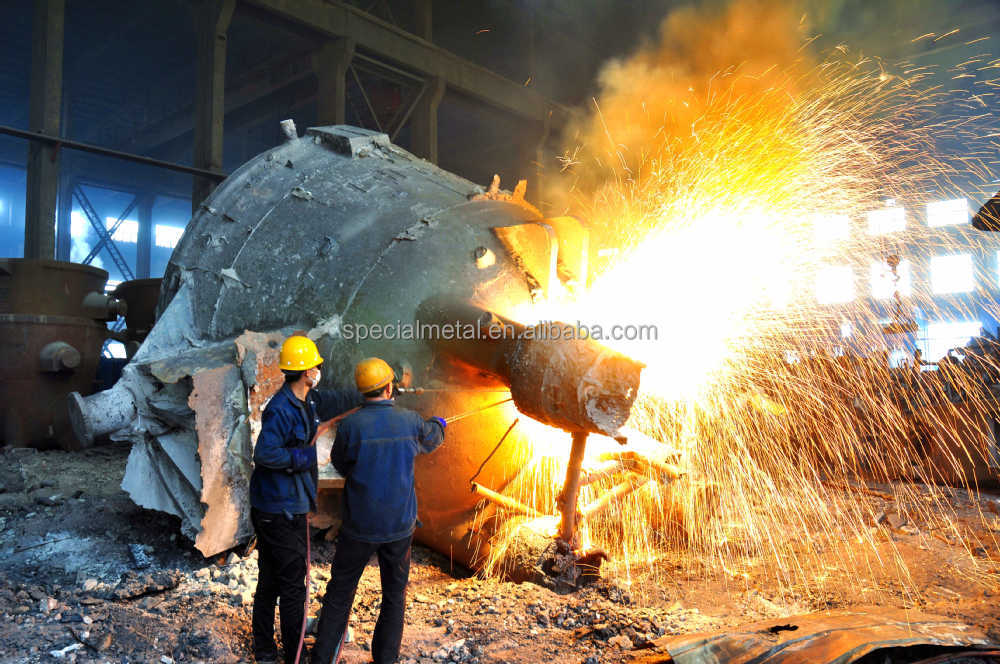

4. First cleaning

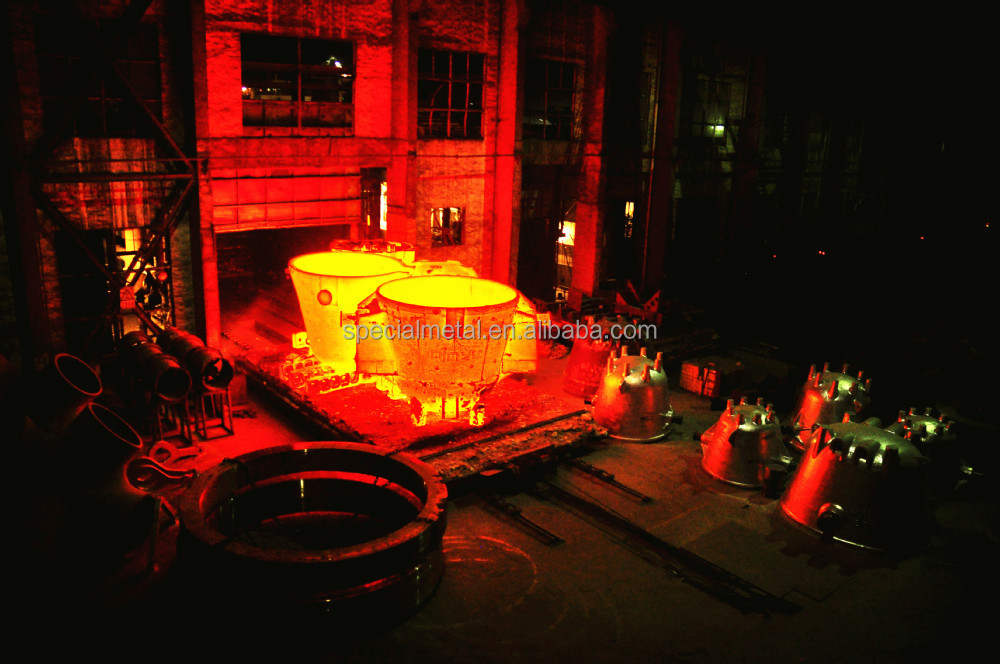

5. Heat treatment


6. Grinding (inspection)

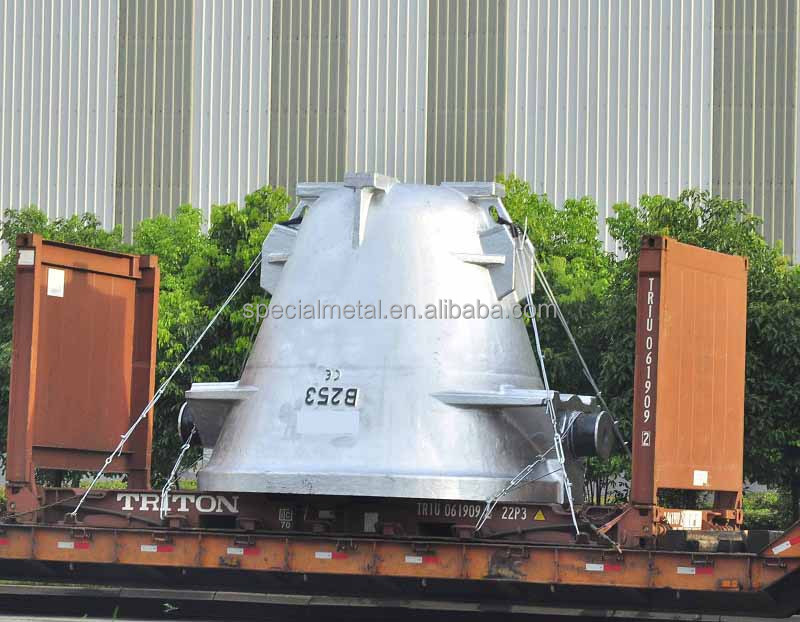

7. Packing-delivering


Quality assurance

The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:

Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination;

Dimensional check supported with a “as-built“ sketch;

Record of the heat treatment chart;
